XiCA Heating Film

Radiation Effects

XiCA establishes the heating film of stability on a worldwide scale.

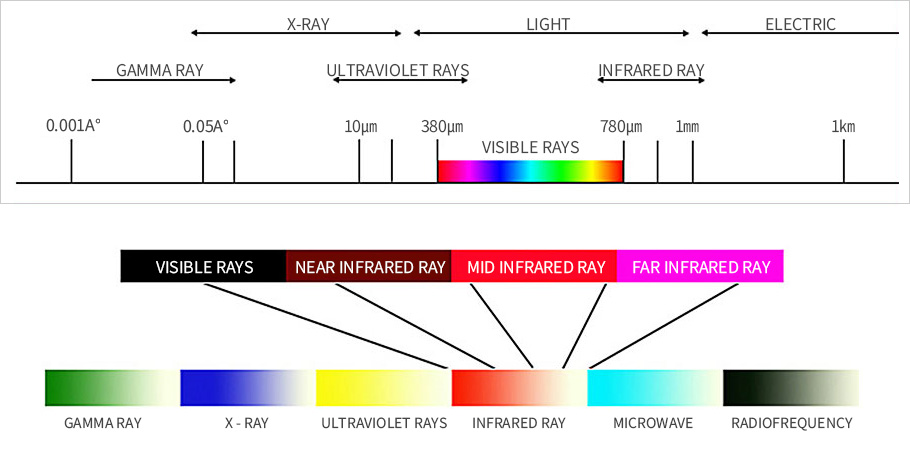

Radiation effect of far-infrared ray

  • Monthly usage is based on the standard which in a heating area of 33 sqm for 8 hours per day for 30 days (assuming general electricity is used).
  • Heating film and electric ondol panel are not included in the basic price.
  • Monthly usage of LPG, kerosene boiler, etc. may vary slightly depending on the thermal efficiency of the insulation and equipment used in the building.
Classification of rays Wave range Action and effect
Ultraviolet ray Deep ultraviolet rays (UV-C) 100nm~280nm Photo-chemical action, sterilization process
MID ultraviolet (UV-B) 280nm~315nm Erythema, Ophthalmic by ultraviolet rays
Far ultraviolet rays (UV-A) 315nm~380nm Vitamin D production and etc.
Visible ray 380nm~780nm Purple(380nm~435nm), Blue(435nm~500nm)
Green(500nm~565nm), Yellow(565nm~600nm)
Orange(600nm~630nm), Red(630nm~780nm)
Infrared ray Near infrared ray (IR-A) 780nm~1.4µm Thermal effects
Medium wave (IR-B) 1.4µm~3µm Drying
Far infrared ray (IR-C) 3µm~1,000µm Organism effects / Activation of water / Aging /
Growth activity / Permeation / Radiation action

Far-infrared ray radiation effect

Regarding dipolar changes by vibration and rotation, most of electron transitions requires the energy of visible rays and infrared rays spectrum and infrared rays occur primarily only in the molecules which have significant difference in the energy among several vibrations and rotations.

So, to absorb or emit infrared radiant rays, the relevant molecule should change dipolar moment by vibration and rotation. If radiating infrared rays with the same wave length to the molecule, the energy of infrared rays is absorbed into the molecule, and by resonance, the molecule or its molecule group are becomes excited. And then, the infrared rays of the wavelengths with the inconsistent number of molecular vibrations transmit or reflect the molecule

In these conditions, the electric field of radiant rays is interactive with molecules and can cause changes in the molecular vibration and rotation. If the number of radiant ray vibrations agrees with that of natural molecular vibrations, energy transfer occurs and the amplitude of molecular vibration changes. As a result, radiant rays are absorbed or emitted. Similarly, if asymmetric molecules rotate around the center of mass, cyclic dipolar changes appear followed by interaction with radiant rays.

Applications and Product Status of Far Infrared

  Field Products and Application
Heating Construction filed Ceiling material, plaster board, wall paper, flooring material, Bricks, Tiles, Panels, Mortar, Paint, Wall Materials etc.
Industrial field Drying : dehydration, painting drying, printing
Aging : fermented wine, aging wine
Hardening : plasticization, painting, adhesion
Molding : plasticization, thermal shrinkage
Plasticity : baking & bakery, aquatic products
Heating: stove, local heating, factory heating, ondol panel
Preheating, thermal insulation: resin molding, food preservation, plant growth
Health / Medical field Sauna, Heat Therapy, Steamer, Medicine Bath, Heat Sheet, Heat Mat, Heating Equipment Hair dryer, stone bed
Kitchenware field Cookware, fry pan, Bread oven, tea pot
Non heating Kitchenware Food container (Plastic, ceramic, glass), Polybag for fresh, heating plate, water bottle, refrigerator deodorant
Textile goods Socks, underwear, bed clothes, pillow, sheet, textiles
Health Products Bandage, Belt, Pad, insole, Necklace, Bracelet
Raw material field Automotive parts Seat cover, handle cover, matt, back supporter
Synthetic Material Anti-fungal ceramic, liquid ceramic, fine ceramic
Crude Material Aluminum, silica, magnesium mineral, charcoal, etc
