01 Inspection before installation
- ㆍ Heating load calculation and power consumption checking
- ㆍ Heating load = 550W/h/3.3 Sq.M
- ㆍ installation area(3.3 sq.M)
- ㆍ W(Electric power consumption) = V² (voltage) / R (resistance)

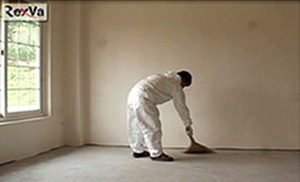

02 Cleanliness check and maintenance
- ㆍ Make cleanliness check before installation to prevent installation problems caused by foreign substances
- ㆍ Maintain cleanliness through continuous removal and cleaning of foreign substances before installation

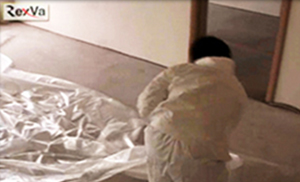

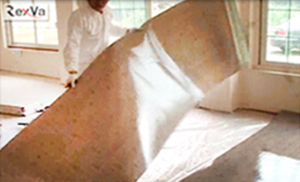

03 Installing waterproof sheet
- ㆍ Installing vinyl plastic sheet to prevents the moisture
- ㆍ Installing vinyl plastic sheet to prevents the moisture condensation and water invasion
- ㆍ Installing vinyl plastic sheet to prevents the moisture when install heating film in semibasement or place where the moisture condensation is severe

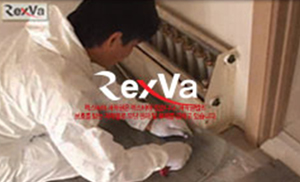

04 Apply insulation pad on th heating film
- ㆍ Insulation has a heat preservation effect that protects heat dissipated from the film, and it also affects electrical efficiency and electricity rates, so care must be taken when selecting insulation.
05 Cutting insulation pad
- ㆍCut up the insulation pad to have it fit the corner of floor area
06 Fixing insulation pad
- ㆍ Fixing installation pad by attaching with tape between the insulation pad installed on the floor .

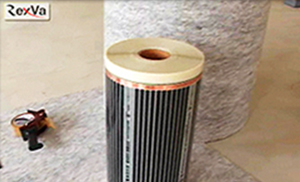

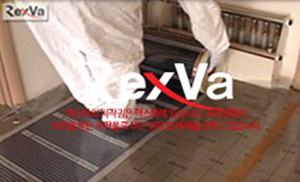

07 XiCA heating film installed over the applied insulation pad
- ㆍ When installing the film, be sure to perform the film work with the shoes and sneakers removed.

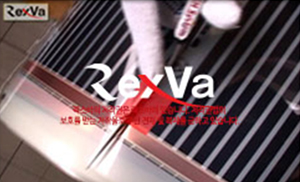

08 Cut the XiCA heating film to fit the corner of floor area .
- ㆍ When cutting the film, Please cut the central part of the P. E. T side without carbon strip .
- ㆍ If the carbon heating part is cut, a short circuit or heat generation function may occur.

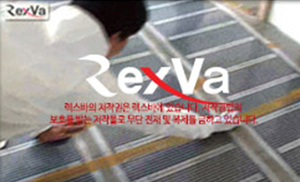

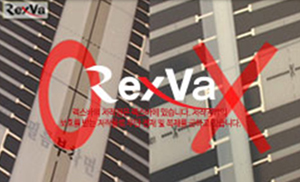

09 Placing heating films
- ㆍ Please install the film so that the film does not overlap with each other . (It is recommended that there is no separation between film and film.)
10 Fixing heating film to insulation
- ㆍ Fix them with taping the heating film on the insulation pad

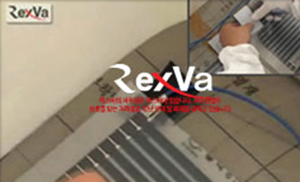

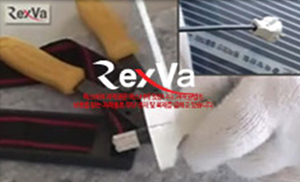

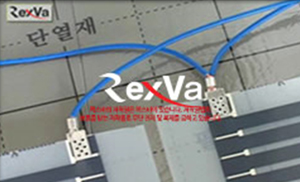

11 Connect the electric wire to the terminal
- ㆍ Connect the electric wire to the terminal using a crimper

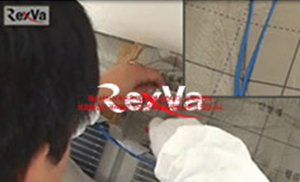

12 Terminal connection
- ㆍ We recommend that the Professional companies use soldering connection method
- ㆍ Connect the terminal to the wire and connect it to the copper busbar side of the heating film
13 Resistance value measurement and total power consumption calculation.
- ㆍ Calculate the total power consumption by measuring the total resistance of the films connected in parallel.
14 Insulation of connected connectors
- ㆍ Attached insulation tape to the connected connectors to insulate all of them
15 The insulation pad treatment
- ㆍ Cut the insulating pad and insert the part of the heating film finished with insulating tape and the wire into the inside of the cut part so that the heating film not to protrude.
- ㆍ The distance between the insulation pad and the wall should be maintained about 5mm to prevent the problem of expansion of the insulation pad due to temperature rising.
16 Tape treatment
- ㆍ Complete insulation wires and terminal with taping

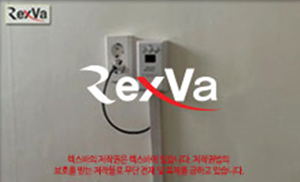

17 Power cord connection
- ㆍ Connect the power cord to supply power to the thermostat.

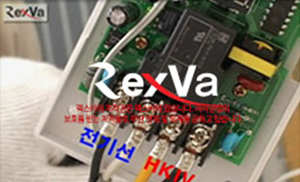

18 Connect thermostat terminals
- ㆍ Connect the power cable from the breaker to the two "IN" terminals on the thermostat, and connect the two "OUT" terminals to the film. And the two "SEN" terminals connect the temperature sensor wire. If the temperature sensor is not connected to the "SEN" display terminal, it is automatically switched to the timer mode (1st stage, 2st stage, 3st stage to 10st stage)
19 Complete the installation of thermostat
- ㆍ After attaching the thermostat to the wall, connect the power supply to complete the thermostat installation.

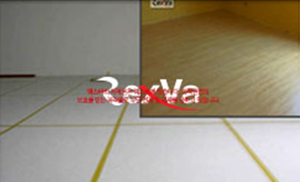

20 Installing the protective material and complete the finishing process
- ㆍ Complete the process by installing strengthened wooden floor or floor paper after attaching the film protector like non-woven fabric, art board and etc. on the heating film
- ㆍ As for installing strengthened wooden floor ,a P.E form with about 2mm thickness should be applied to prevent the click area of the strengthened wooden floor from coming off
